Regal Beloit America

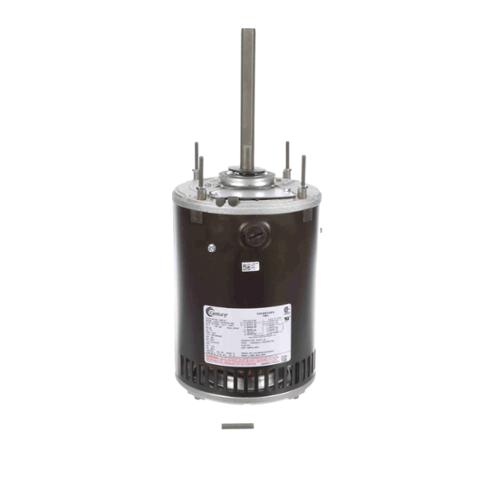

Condenser Fan Motor, .75 HP, 1 Ph, 60 Hz, 200-230/460 V, 1200 RPM, 56Y Frame, OAO

PART c661v2
MFG C661V2
Calculating price...
QUANTITY

About this item

  • Automatic reset thermal protector prevents overheating
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor
  • Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
  • Vertical/horizontal mounting for proper placement of the fan within airflow

There are currently no resources for this product.

Brand Regal Beloit America
HP Rating 3/4 hp
Voltage Rating 200-230/460 V
Amperage Rating 4.4 to 4/2 A
Frequency Rating 60 Hz
Phase 1 ph
Speed Rating 1075 rpm
Number of Speeds 1
Enclosure Type Open Air Over
Frame 56Y
Shaft Size 0.625 in Dia x 6.06 in L
Service Factor 1
Bearing Type Ball
Temperature Rating 60 deg C
Insulation Class B
Housing Material Steel
Additional Information 16.31 in L Dimensions, 6-Pole, 6-1/4 in Frame, Round-Mounting, Polyphase, Induction Run, Single or Dual Voltage Type, Selective CCW Rotation, Across-The-Line Starting Method, Single Special Extension Shaft
