Regal Beloit America

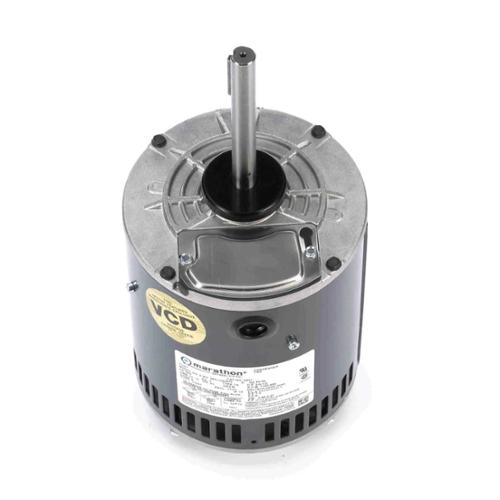

Condenser Fan Motor, 0.75 & 0.50 HP, 3 Ph, 60 & 50 Hz, 200-230/460 & 190/380 V, 1200 & 1000 RPM, 56Y Frame, OPAO

PART X501
MFG X501
Calculating price...
QUANTITY

About this item

  • Automatic reset thermal protector prevents overheating
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor
  • Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
  • Vertical/horizontal mounting for proper placement of the fan within airflow

There are currently no resources for this product.

Brand Regal Beloit America
HP Rating 3/4 hp, 1/2 hp
Voltage Rating 200-230/460 V, 190/380 V
Amperage Rating 3.2 to 3.2/1.6 A, 2.6/1.3 A
Frequency Rating 50/60 Hz
Phase 3 ph
Speed Rating 1140 rpm, 950 rpm
Number of Speeds 1
Enclosure Type Open Air Over
Frame 56Y
Shaft Size 0.625 in Dia x 5.06 in L
Service Factor 1
Bearing Type Ball
Mounting Type Belly Band
Temperature Rating 70 deg C
Insulation Class H
Housing Material Steel
Additional Information Model 56T11O5301F, 14.56 in L Dimensions, 74% Efficiency, 59.1 Power Factor, 6-Pole, 6.3 Ohm Resistance, 7.06 in L Frame, Squirrel Cage Induction Run Type, Reversible Rotation, Across-The-Line Starting Method
