Home Residential HVAC Equipment Residential Packaged Units Wall Mount Packaged Units 4 ton BARD Wall Mount Straight Cool 230/1 R454B - A2L - No Heat

Bard HVAC

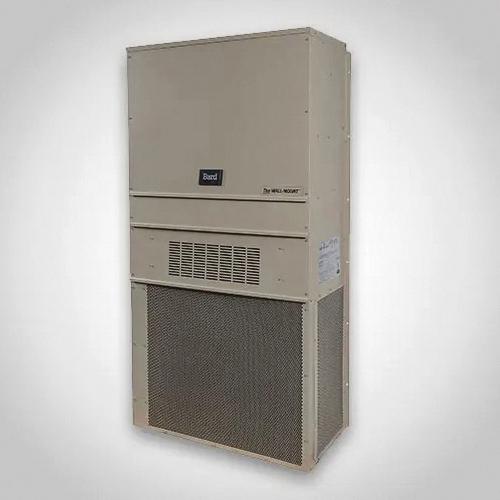

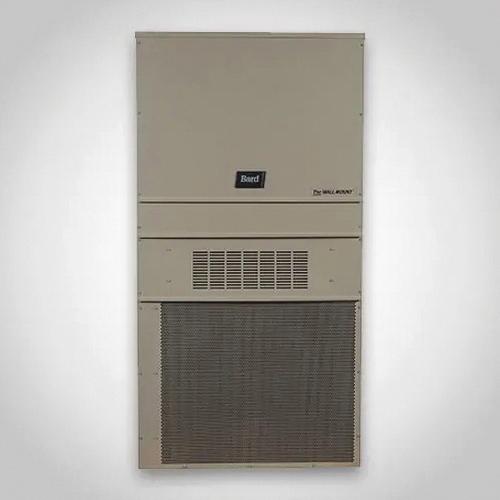

4 ton BARD Wall Mount Straight Cool 230/1 R454B - A2L - No Heat

PART W48AF-A00
AHRI # 216013433
MFG W48AF-A00XXXXXX
Calculating price...
QUANTITY

About this item

  • 11.0 EER cooling efficiency
  • 3.5 to 6.0 ton cooling capacity
  • Single and three phase power options
  • Copeland scroll compressor
  • EC brushless constant tourque indoor blower motor
  • R-410A green refrigerant
  • Balanced Climate
  • Natural fiber non-fiberglass insulation
  • Hydrophilic aluminum finned copper evaportator coil
  • Front access control compartment
  • Factory installed electric heat
  • Factory installed ventilation options
  • AHRI Certified
  • ETL Listed (US and Canada)

11 EER Energy efficient and built to last, the Single Stage Wall-Mount AC Units offer Balance Climate for maximum indoor comfort at a minimal cost. Designed for a variety of applications, these AC units also provide quiet operation. Factory or field installed accessories are available to meet specific job requirements.

Catalog
Catalog
Specification Sheet
Specification Sheet
Brand Bard HVAC
Model W48AF
Nominal Capacity 4 ton
Cooling BTU Rating 48000 Btu/hr
Voltage Rating 208/230 V
Amperage Rating 1.9 A
HP Rating 1/3 hp
Frequency Rating 60 Hz
Phase 1 ph
Compressor Type Scroll
CFM Rating 3000 cfm
EER Rating 11
Number of Speeds 5
Number of Stages 1
Refrigerant Type R-454B
Sound Level 69 dBA
Mounting Type Wall
Motor Type PSC
Filter Size 20 x 20 x 1 in
Fuse Rating 45 A
Control Type Standard
Material Steel
Finish Enamel/Painted/Zinc-Coated
Color Beige
Dimensions 84.8 in H x 42 in W x 25.5 in D
Additional Information Unit Front AC Control Location, Intake Barometric Air Damper Vent Package, 1 in MERV2 Disposable Filter, Standard Cabinet Style, Standard Copper/Aluminum Evaporator and Condenser Coils
