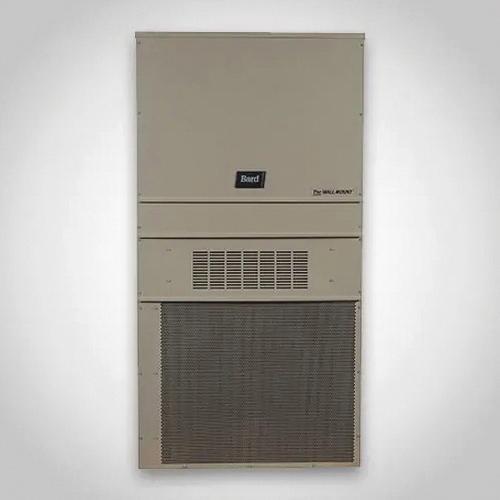

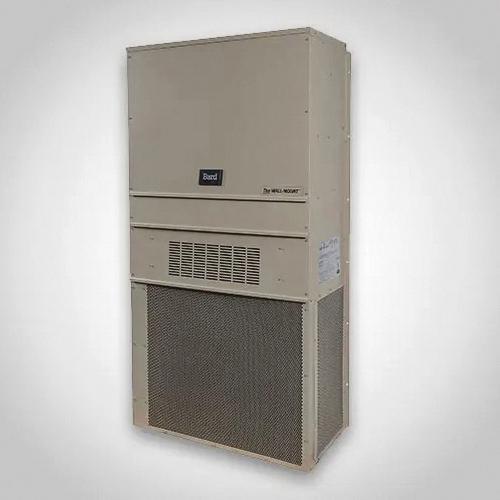

3.5 ton BARD Wall Mount Heat Pump 230/1 R454B - A2L - No Heat

PART W42HF-A00
MFG W42HF-A00
Calculating price...
QUANTITY

About this item

  • 11.00 EER cooling efficiency
  • 3.3 COP heating efficiency
  • 1.5 - 5.0 ton capacity
  • Single and three-phase power options
  • Copeland scroll compressor
  • R-410A green refrigerant
  • Balanced Climate feature
  • Natural Fiber Insulation
  • Hydrophilic Evaporator Coils
  • Factory installed electric options
  • Factory installed ventilation options

The Bard Wall-Mount Heat Pump is a self-contained energy efficient heating and cooling system, which is designed to offer maximum indoor comfort at a minimal cost without using valuable indoor floor space or outside ground space.

Catalog
Catalog
Instruction/Installation Manual
Instruction/Installation Manual
Specification Sheet
Specification Sheet
Brand Bard HVAC
Series WH Series
Model W42HF
Nominal Capacity 3.5 ton
Cooling BTU Rating 42500 Btu/hr
Heating BTU Rating 38000 Btu/hr
Voltage Rating 208/230 V
Amperage Rating 19.1/22 A
HP Rating 1/2 hp, 1/3 hp
Frequency Rating 60 Hz
Phase 1 ph
Compressor Type Scroll
CFM Rating 2900 cfm
EER Rating 11
Refrigerant Type R-454B
Number of Stages 1
Mounting Type Wall
Filter Size 20 x 20 x 1 in
Material Steel
Finish Baked Enamel
Color Beige
Dimensions 84.8 in H x 42 in W x 25.5 in D
Domestic/Import Domestic
