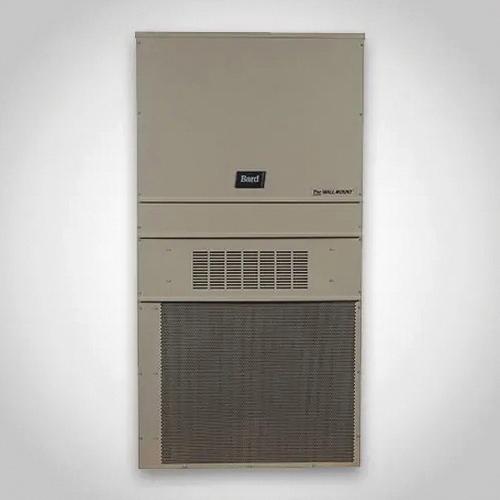

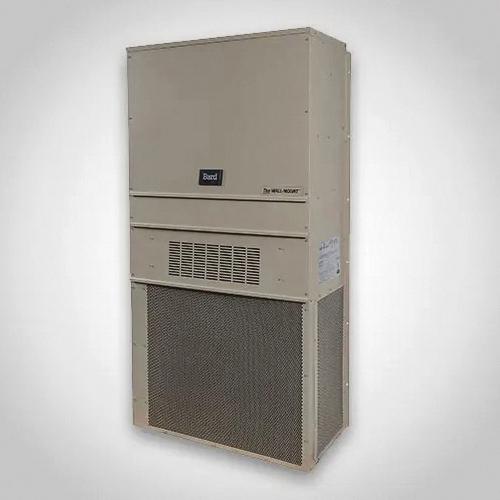

3.5 ton BARD Wall Mount w/10kw Heater Sraight Cool 230/1 R410a

PART W42AY-A10

MFG W42AY-A10XXXXXX

Calculating price...

QUANTITY

About this item

11.0 EER cooling efficiency
3.5 to 6.0 ton cooling capacity
Single and three phase power options
Copeland scroll compressor
EC brushless constant tourque indoor blower motor
R-410A green refrigerant
Balanced Climate
Natural fiber non-fiberglass insulation
Hydrophilic aluminum finned copper evaportator coil
Front access control compartment
Factory installed electric heat
Factory installed ventilation options
AHRI Certified
ETL Listed (US and Canada)

11 EER Energy efficient and built to last, the Single Stage Wall-Mount AC Units offer Balance Climate for maximum indoor comfort at a minimal cost. Designed for a variety of applications, these AC units also provide quiet operation. Factory or field installed accessories are available to meet specific job requirements.

Specification Sheet

Specification Sheet

Catalog

Catalog

Brand Bard HVAC

Model W42AY

Nominal Capacity 3.5 ton

Cooling BTU Rating 42000 Btu/hr

Voltage Rating 230/208 V

Amperage Rating 1.9 A

Wattage 10 kW

HP Rating 1/3 hp

Rotational Speed 825 rpm

Frequency Rating 60 Hz

Phase 1 ph

Compressor Type Scroll

CFM Rating 2900 cfm

EER Rating 11

Number of Speeds 5

Number of Stages 1

Refrigerant Type R-410A

Sound Level 68.6 dBA

Mounting Type Wall

Motor Type Constant Torque ECM

Filter Size 20 x 20 x 1 in

Fuse Rating 60 A

Control Type CCM, HPS, LPS

Material Steel

Finish Baked Enamel/Painted/Zinc-Coated

Color Beige

Dimensions 84.8 in H x 42 in W x 25.5 in D

Additional Information Intake Standard Fresh Air Damper Vent Package, 1 in MERV2 Disposable Filter, Standard Supply Outlet, Standard Copper/Aluminum Coils
