Bard HVAC

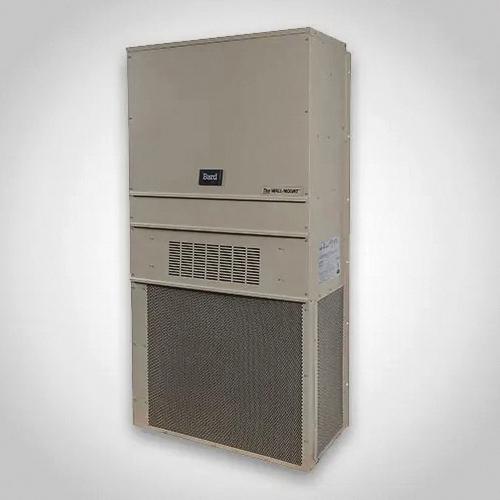

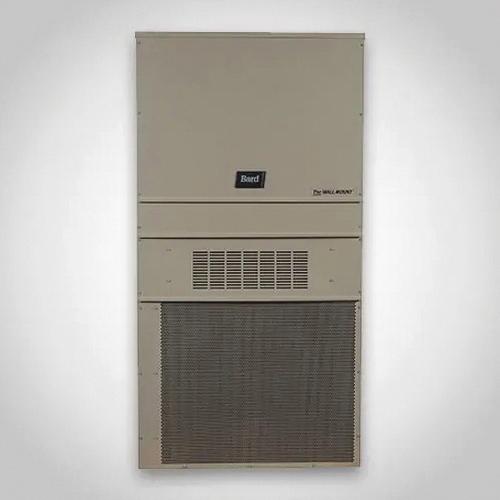

3 ton BARD Wall Mount Straight Cool 230/1 R454B - A2L - No Heat

PART W36AF-A00

MFG W36AF-A00XXXXXX

Calculating price...

QUANTITY

About this item

11.0 EER cooling efficiency
3.5 to 6.0 ton cooling capacity
Single and three phase power options
Copeland scroll compressor
EC brushless constant tourque indoor blower motor
R-410A green refrigerant
Balanced Climate
Natural fiber non-fiberglass insulation
Hydrophilic aluminum finned copper evaportator coil
Front access control compartment
Factory installed electric heat
Factory installed ventilation options
AHRI Certified
ETL Listed (US and Canada)

11 EER Energy efficient and built to last, the Single Stage Wall-Mount AC Units offer Balance Climate for maximum indoor comfort at a minimal cost. Designed for a variety of applications, these AC units also provide quiet operation. Factory or field installed accessories are available to meet specific job requirements.

Catalog

Catalog

Specification Sheet

Specification Sheet

Brand Bard HVAC

Model W36AF

Nominal Capacity 3 ton

Cooling BTU Rating 36000 Btu/hr

Voltage Rating 208/230 V

Amperage Rating 1.3 A

HP Rating 1/5 hp

Frequency Rating 60 Hz

Phase 1 ph

Compressor Type Scroll

CFM Rating 2400 cfm

EER Rating 11

Number of Speeds 5

Number of Stages 1

Refrigerant Type R-454B

Sound Level 67.1 dBA

Mounting Type Wall

Motor Type PSC

Filter Size 16 x 30 x 1 in

Fuse Rating 35 A

Control Type Standard

Material Steel

Finish Enamel/Painted/Zinc-Coated

Color Beige

Dimensions 74.6 in H x 38.2 in W x 17.1 in D

Additional Information Right Side/Center AC Control Location, Intake Barometric Air Damper Vent Package, 1 in MERV2 Disposable Filter, Standard Cabinet Style, Standard Copper/Aluminum Evaporator and Condenser Coils

3 ton BARD Wall Mount Straight Cool 230/1 R454B - A2L - No Heat
