Bard HVAC

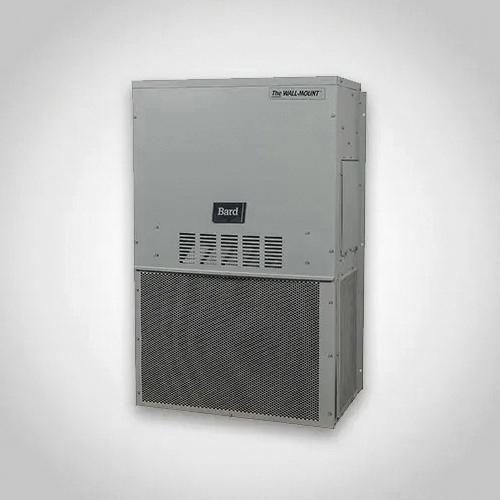

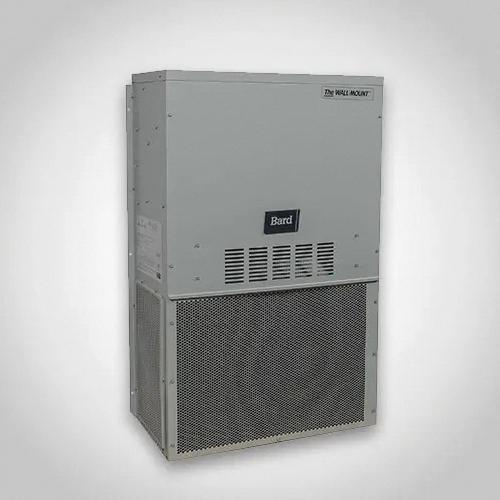

1 ton BARD Wall Mount w/3kw Heater Straight Cool 230/1 R454B - A2L

PART W12AF-A03
MFG W12AF-A03XXXXXX
Calculating price...
QUANTITY

About this item

  • 12,000 Btuh cooling capacity
  • 1 ton capacity
  • High-efficiency rotary compressor
  • Quiet twin blowers
  • Aluminum finned copper coils
  • R-410A refrigerant
  • Liquid line filter drier

50Hz and 60Hz One Ton units provide maximum indoor comfort at minimal cost, delivering energy efficiency, quiet operation and high durability. Factory or field installed accessories are available to meet specific job requirements.

Catalog
Catalog
Specification Sheet
Specification Sheet
Brand Bard HVAC
Model W12AF
Nominal Capacity 1 ton
Cooling BTU Rating 13800 Btu/hr
Voltage Rating 230/208 V
Amperage Rating 0.5 A
Wattage 3 kW
HP Rating 1/12 hp
Frequency Rating 60 Hz
Phase 1 ph
Compressor Type Rotary
CFM Rating 950 cfm
EER Rating 11
Number of Speeds 1
Number of Stages 1
Refrigerant Type R-454B
Sound Level 65.2 dBA
Mounting Type Wall
Motor Type PSC
Filter Size 12 x 24 x 1 in
Fuse Rating 25 A
Control Type Standard
Material Steel
Finish Enamel/Painted/Zinc-Coated
Color Beige
Dimensions 48 in H x 14.6 in W x 30.1 in D
Additional Information Right Side/Center AC Control Location, Intake Barometric Air Damper Vent Package, 1 in MERV2 Disposable Filter, Standard Cabinet Style, Standard Copper/Aluminum Evaporator and Condenser Coils
