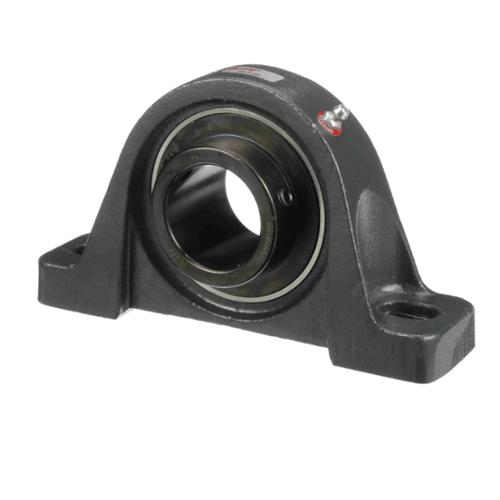

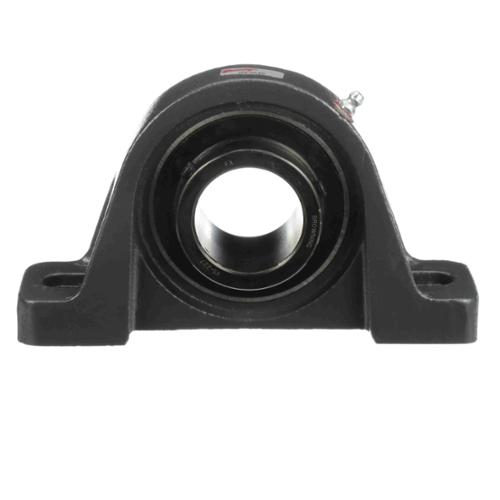

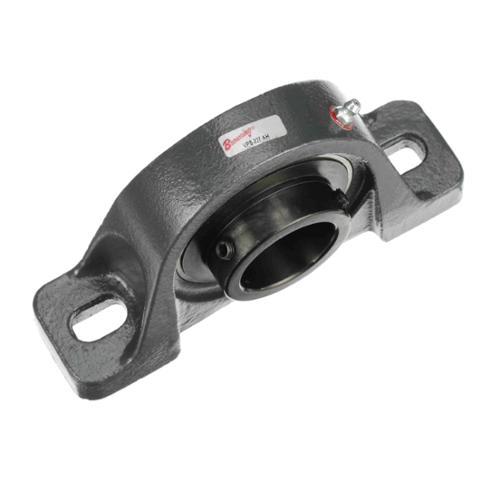

VPS 200 Series Pillow Block Ball Bearing, 1-11/16" Dia Bore

Browning

PART VPS-227 AH

MFG VPS-227 AH

Calculating price...

QUANTITY

Powder coat epoxy cast iron housing
Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
Single lip contact seal and flinger
Air Handling noise check for quiet operation
Looser than standard housing fit for ease of alignment on lightweight frames

Instruction/Installation Manual

Instruction/Installation Manual

Brand Browning

Bore Diameter 1-11/16 in

Base Width 2 in

Housing Width 2 in

Bolt Center-to-Center Length 6.11 in

Base to Bore Centerline 2.13 in

Bolt Size 1/2 in

Load Capacity 5139 lb Static, 7370 lb Dynamic

Maximum Speed Rating 3000 rpm

Bore Type Straight

Rolling Element Ball

Duty Type Standard

Clearance Standard

Seal Type Single Lip with Flinger

Expansion Type Non-Expansion

Locking Device Setscrew

Mounting Type 2-Bolt Base

Bearing Material Cast Iron

Cage Material Molded Fiberglass Reinforced Nylon

Color Black

Finish Powder-Coated Epoxy

Temperature Rating 225 deg F

Dimensions 7-1/4 in L x 2 in W x 4-1/4 in H
