- Swap 1/4" standard service port fitting with optional 5/16" fitting for mini-splits

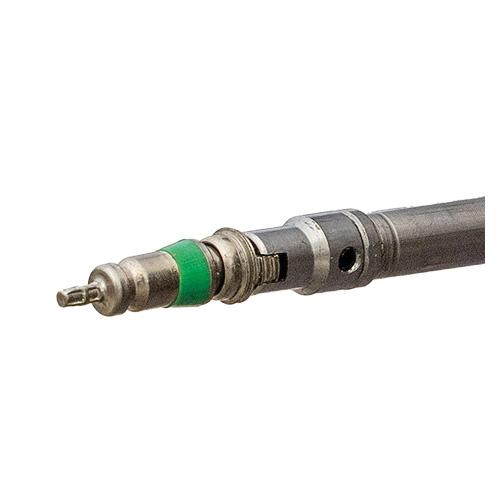

- Lock in the valve core in one try - a gasket secures the valve core pin
- Easier removal and insertion against pressure with a comfort spinner - a free-spinning, rubberized, magnetic cap
- Dual ball valves for protecting test gauges and using multiple hose lines
- Vacuum-rated to 20 microns
- A2L Compatible

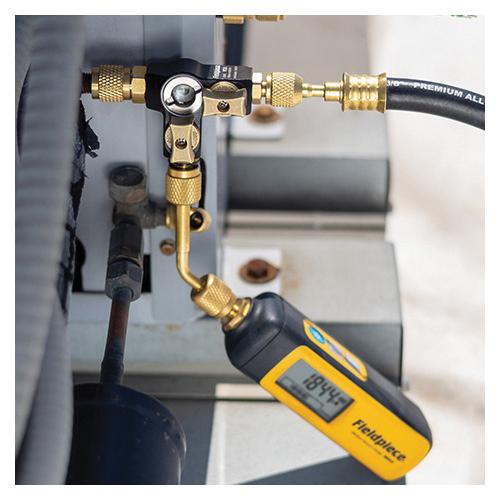

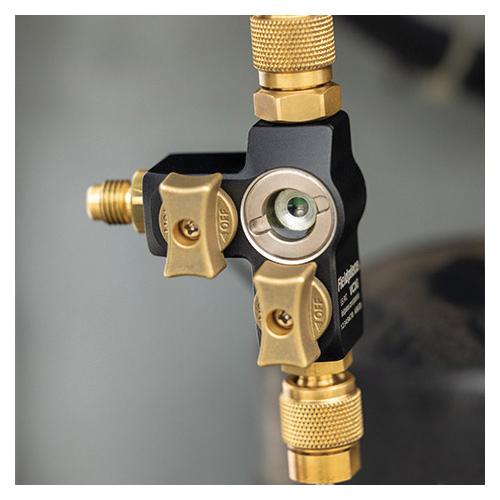

Know you've got it - the VC2G has an integrated sight glass so you visually verify the valve core is engaged before removing it, as well as confirm refrigerant is flowing. A second ball valve on the side port protects your vacuum and pressure gauges.
Brand
Fieldpiece Instruments
Size
1/4 in
Connection Type
Female Service Port x Male Side Port x Male Service Hose
Length
5.06 in
Width
1-1/2 in
Height
2.63 in
Pressure Rating
800 psi
Additional Information
20 um Vacuum Rating
