Home HVACR Components Condensate Pumps ULTRA Series 230V Condensate Pump, 22' Lift with Tubing, Overflow Switch, LED Indicator, Translucent Red Tank

DiversiTech Corporation

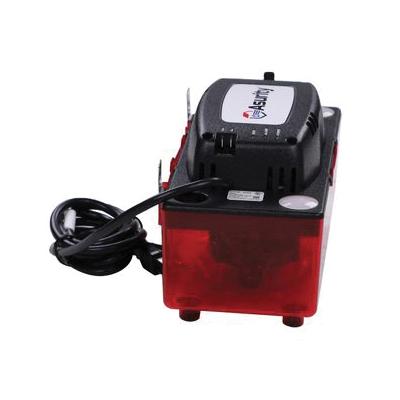

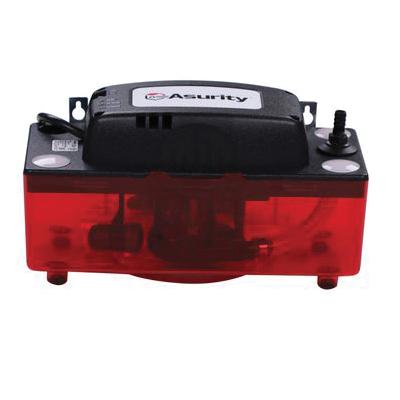

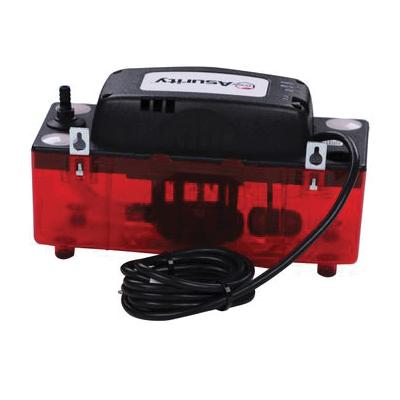

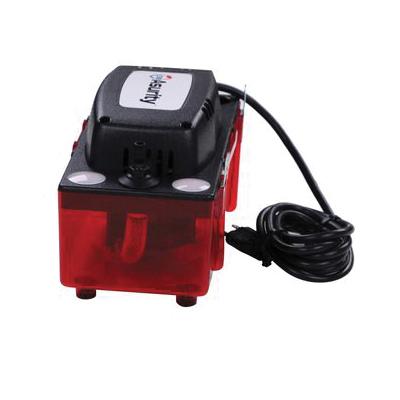

ULTRA Series 230V Condensate Pump, 22' Lift with Tubing, Overflow Switch, LED Indicator, Translucent Red Tank

PART ULTRACP-22T-230
MFG ULTRACP-22T-230
Calculating price...
QUANTITY

About this item

  • Translucent Tank for Easy & Fast Inspection
  • LED Indicators Confirm Pump Status
  • Built-in Safety Overflow Switch
  • Reversible deck for more installation options
  • Removable Check Valve for Easy Cleaning
  • Suitable for condensate up to 160 deg F
  • Vibration dampening feet and motor mounts minimize sound
  • 20 ft of tubing included for easy installation

The Asurity® ULTRACP-22T-230 Condensate Pump is a 230 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature.

Specification Sheet
Specification Sheet
Instruction/Installation Manual
Instruction/Installation Manual
Brand DiversiTech Corporation
Series Ultra Series
Voltage Rating 230 V
Amperage Rating 1 A
HP Rating 1/30 hp
Frequency Rating 60 Hz
Flow Rate 132 gph
Discharge Size 3/8 in
Tank Size 1/2 gal
Suction Lift 22 ft
Number of Inlets 4
Temperature Rating 160 deg F
Color Translucent Red
