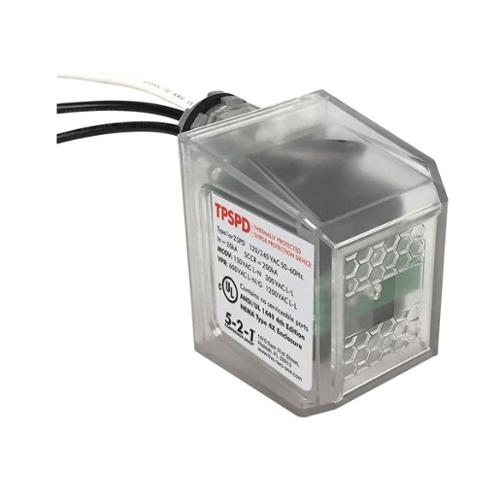

5-2-1 Thermally Protected Surge Protector for HVAC Equipment

PART TPSPD
MFG TPSPD
Calculating price...
QUANTITY

About this item

  • Patented thermally protected MOV
  • Type 1 or 2 installations (A/C disconnect, Junction box, Electrical box)
  • NEMA 4X enclosure (Outdoor/ Indoor use)
  • Diagnostic indicator (Green LED [ON] = Device active, Green LED [OFF] = Replace device)

The 5-2-1® Thermally Protected Surge Protection device, TPSPD, is designed to protect HVAC equipment and other high-end appliances from damaging electrical surges produced by proximity lightning strikes and other power line transients. Engineered using the latest in Thermally Protected Metal Oxide Varistor (MOV) technology and independently tested to ensure superior protection and reliability for your customers.

Specification Sheet
Specification Sheet
Instruction/Installation Manual
Instruction/Installation Manual
Catalog
Catalog
Brand 5-2-1
Voltage Rating 120/240 V
Additional Information 100 kA Maximum Surge Current, 1 or 2 SPD Type, 20 kA Nominal Discharge Current, 150 VAC L-N, 300 VAC L-L Maximum Continuous Operating Voltage, 600 VAC L-N/G 1200 VAC L-L Voltage Protection Rating
Length 3.11 in
Phase 1 ph
Frequency Rating 50/60 Hz
NEMA Rating NEMA 4X
Width 2.2 in
Interrupt Rating 200 kA
Temperature Rating 14 to 122 deg F
