Home Test Instruments Meters Clamp Meters True RMS Compact Clamp Meter with Backlit Display and Non-Contact

Fieldpiece Instruments

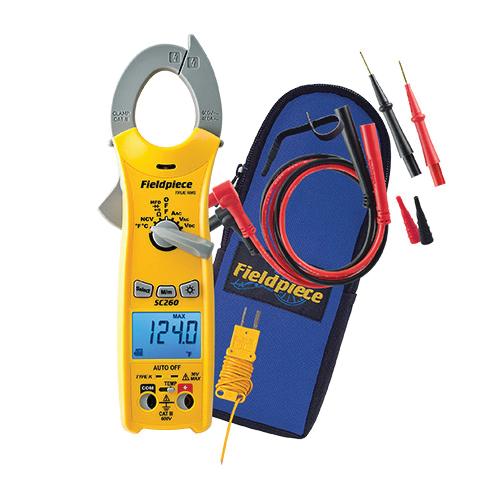

True RMS Compact Clamp Meter with Backlit Display and Non-Contact

PART SC260
MFG SC260
Calculating price...
QUANTITY

About this item

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places and a sturdy swivel magnet for hands free measurements. The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.

Owners/User Manual
Owners/User Manual
Brand Fieldpiece Instruments
Voltage Rating 600 V
Amperage Rating 400 A
Resistance 40 MOhm
Jaw Capacity 1.2 in
Counts 4000
Display Type Backlit LCD
Voltage Accuracy +/-0.5%, +/-1.5%
Safety Rating CAT III 600 V
Operating Temperature 32 to 122 deg F
Temperature Rating 32 to 122 deg F
Dimensions 205.5 mm H x 67.4 mm W x 45.1 mm D
Additional Information Battery Power Source
