Home Commercial Refrigeration Equipment Walk-In Unit Coolers / Evaporators Low Profile Electric Defrost Low Profile Cooler Unit, 16200 Btu/hr, 3140 cfm, 208 to 230 V, 60 Hz, 1 ph

HTPG-Russell

Low Profile Cooler Unit, 16200 Btu/hr, 3140 cfm, 208 to 230 V, 60 Hz, 1 ph

PART RL6E162DDA
MFG RL6E162DDA
Calculating price...
QUANTITY

About this item

  • Embossed aluminum housing is lightweight and durable
  • Fan sections are baffled to prevent short cycling of air

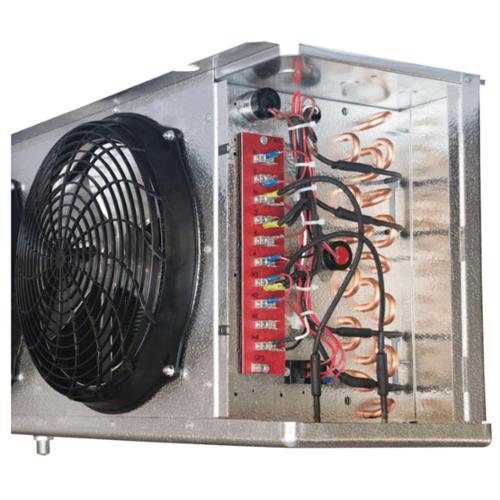

  • End panels slide-out for easy serviceability from the front or ends of the unit
  • Mounts flush to the ceiling to maximize headroom and space
  • Single fan through six fan models

Russell all-temps were the original low profile unit coolers that established the industry standard as being the all-purpose design for walk-in coolers, freezers and other applications. We've taken these unit coolers to the next level with the release of the next-gen all-temp models. The units feature a new fan guard design and deep draw venturi to achieve optimal airflow and easy access for serviceability. These models can be used with multiple refrigerants and are available in air, electric and hot gas defrost configurations.

Specification Sheet
Specification Sheet
Instruction/Installation Manual
Instruction/Installation Manual
Brand HTPG-Russell
Voltage Rating 208 to 230 V
Frequency Rating 60 Hz
Phase 1 ph
BTU Rating 16200 Btu/hr
CFM Rating 3140 cfm
Connection Size 3/8 in, 1-1/8 in
Fan Size 12 in
Configuration Electric Defrost
Number of Speeds 2
Motor Type ECM
Tube Size 3/8 in
Fins per Inch 6 FPI
Humidity Rating 50 %
Mounting Type Flush
Material Aluminum
Temperature Rating -20 to 34 deg F
