Home Commercial Refrigeration Equipment Walk-In Unit Coolers / Evaporators Low Profile Electric Defrost Unit Cooler- Walk-In, Low Profile, Electric Defrost, 230v, 4 FPI, 3 Fans, R404A 9,400 BTU - R448A/R449A 11,000 BTU at -20°F

Rheem Manufacturing

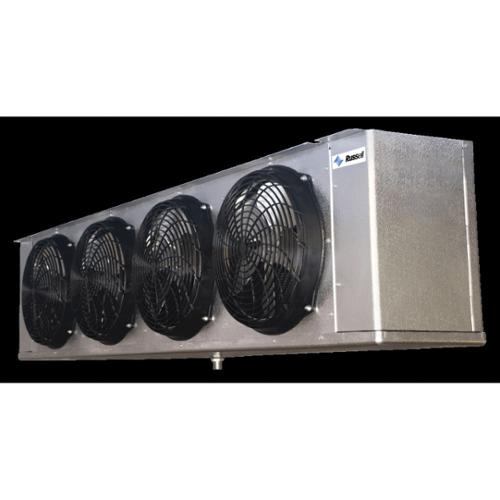

Unit Cooler- Walk-In, Low Profile, Electric Defrost, 230v, 4 FPI, 3 Fans, R404A 9,400 BTU - R448A/R449A 11,000 BTU at -20°F

PART RL4E094DDA
MFG RL4E094DDA
Calculating price...
QUANTITY

About this item

  • Dual Speed EC Motors (Dual Speed EC Motors are compliant with California Title 24 Regulations)
  • Embossed aluminum housing is lightweight and durable
  • Fan sections are baffled to prevent short cycling of air

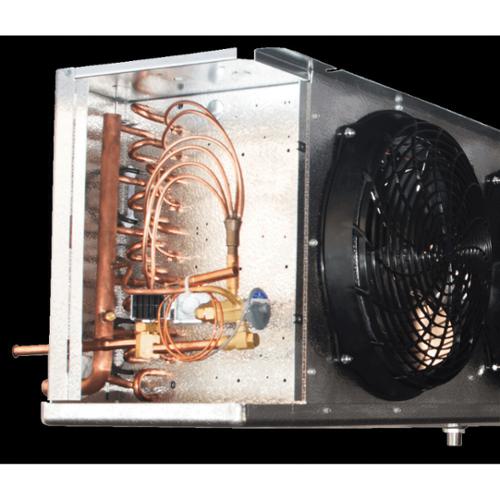

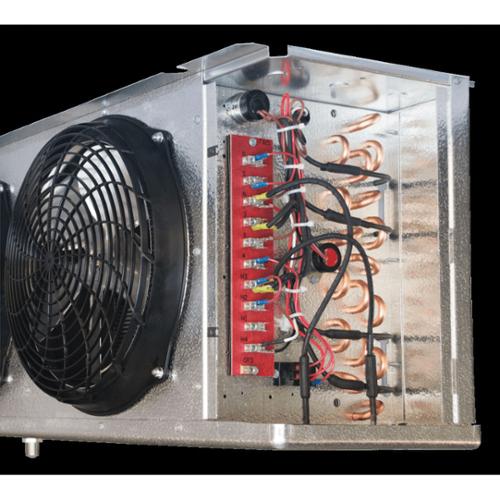

  • End panels slide out for easy serviceability from the front or ends of the unit
  • Mounts flush to the ceiling to maximize headroom and space
  • UL/cUL certified for use with multiple refrigerants
  • NSF approved for use in food preparation areas
  • Single fan through six fan models
  • Capacities range from 2,700 to 45,900 BTUH

Russell All-Temps were the original low profile unit coolers that established the industry standard as being the all-purpose design for walk-in coolers, freezers and other applications. We've taken these unit coolers to the next level with the release of the Next-Gen All-Temp models. The units feature a new fan guard design and deep draw venturi to achieve optimal airflow and easy access for serviceability. These models can be used with multiple refrigerants and are available in air, electric and hot gas defrost configurations.

Instruction/Installation Manual
Instruction/Installation Manual
Catalog
Catalog
Brand Rheem Manufacturing
Series Next-Gen All-Temp Series
Model RL4E094
Voltage Rating 208-230 V
Amperage Rating 15 A
Frequency Rating 60 Hz
Phase 1 ph
BTU Rating 9400 Btu/hr
CFM Rating 2355 cfm
Connection Type NPT
Connection Size 3/4 in
Refrigerant Type R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-449B
Fan Size 12 in
Configuration Electric Defrost
Number of Fans 3
Number of Speeds 2
Motor Type ECM
Fins per Inch 4 FPI
Mounting Type Ceiling Flush
Material Aluminum
Temperature Rating -20 to 32 deg F
Dimensions 18-1/8 in H x 60-1/8 in W x 15-1/2 in D
Additional Information 3/8 in Liquid Line, 1-1/8 in Suction Line
