Home Commercial Refrigeration Equipment Packaged Refrigeration Systems Packaged Refrigeration System- Medium Temp, Scroll Compressor, 3/4 HP, R-448A, 115v, Air Defrost

HTPG-Russell

Packaged Refrigeration System- Medium Temp, Scroll Compressor, 3/4 HP, R-448A, 115v, Air Defrost

PART HPO080M48AA
MFG HPO080M48AA
Calculating price...
QUANTITY

About this item

  • EcoNet Enabled to maximize energy efficiency with less compressor runtime
  • Available outdoor options include and Roof Kit and Hail Guard
  • 2 Cabinet Sizes
  • Boil-out pan is offered with an option of a PVC drain line connection
  • One electrical wiring point with the ability to add a plug on select models

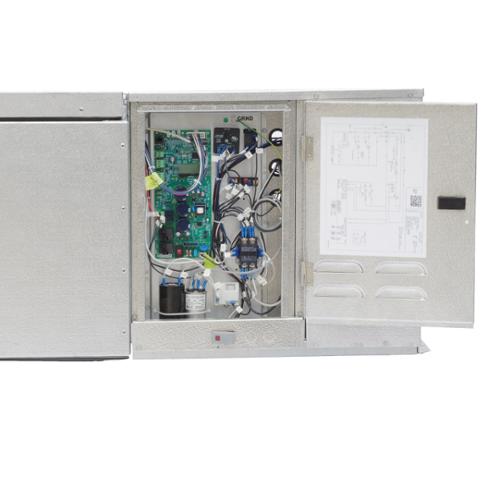

  • Lift-off panels & large electrical box
  • Factory pre-charged with R-448A

The Packaged Refrigeration System's innovative design is a DOE AWEF rated self-contained system that comes in two sizes to satisfy low and medium temperature refrigeration needs -- ideal for fast food service chains and inside shopping mall food establishments. We strive to incorporate sustainable solutions along with options and functionality that satisfy regulatory compliance. These units improve product quality by reducing temperature fluctuation and maximizing energy efficiency with less compressor runtime. For easy installation and serviceability, the units feature lift-off hinges and panels and multiple drain-out points for either a boil-out drain pan or PVC connection.

Catalog
Catalog
Instruction/Installation Manual
Instruction/Installation Manual
Brand HTPG-Russell
Voltage Rating 115 V
Amperage Rating 15.1 A
Power Rating 3/4 hp
Frequency Rating 60 Hz
Refrigerant Type R-448A
Defrost System Air
BTU Rating 4790 to 15830 Btu/hr
Dimensions 56-1/2 in L x 32-3/16 in W x 25-1/2 in H
Additional Information Scroll Compressor, Small Cabinet Size, Medium Temperature, Vintage
