Regal Beloit America

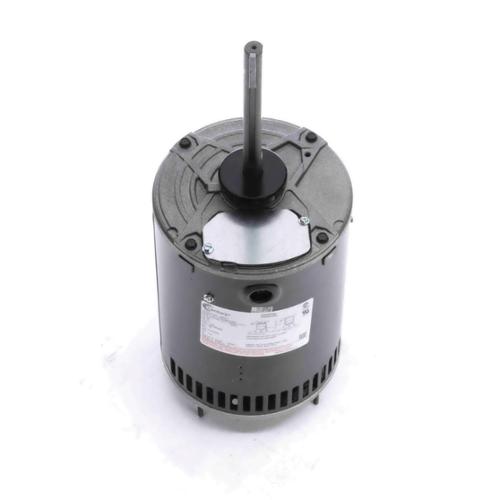

PART H667V1

MFG H667V1

Calculating price...

QUANTITY

Automatic reset thermal protector prevents overheating
Permanently lubricated, double sealed bearings extend the lifetime of the motor
Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
Vertical/horizontal mounting for proper placement of the fan within airflow

Specification Sheet

Specification Sheet

Brand Regal Beloit America

HP Rating 1 hp

Voltage Rating 230/460 V

Amperage Rating 4.3/4.6 A

Frequency Rating 60 Hz

Phase 3 ph

Speed Rating 1140 rpm

Number of Speeds 1

Enclosure Type Open Air Over

Frame 56Y

Shaft Size 0.625 in Dia x 6.6 in L

Service Factor 1

Bearing Type Ball

Mounting Type Round

Temperature Rating 60 deg C

Insulation Class Class B

Housing Material Steel

Overall Width 16.52 in
