Regal Beloit America

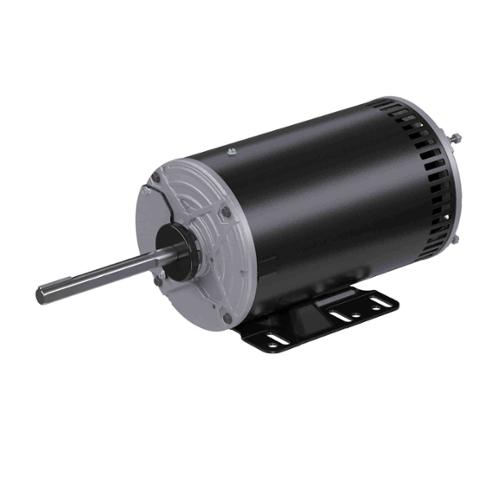

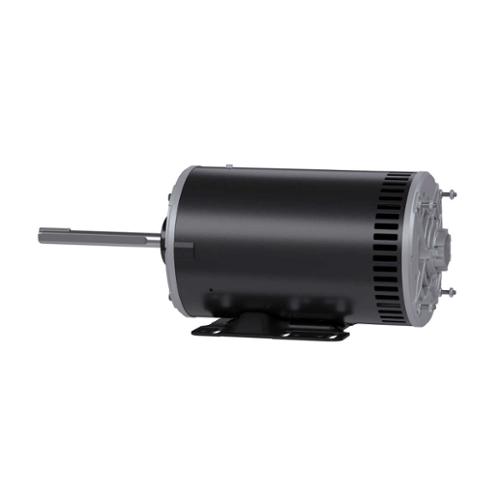

Condenser Fan Motor, 1.5&1 HP, 3 Ph, 60 Hz, 230/460&190/380 V, 56HZ Frame, OPAO

PART H1051AV1
MFG H1051AV1
Calculating price...
QUANTITY

About this item

  • High operating temps, Rated 70 deg C (158 deg F) Max Ambient temperature
  • Patented Max Guard® insulation system ensures dependable motor life under the adverse thermal and dielectric stresses imposed by the high switching frequencies of PWM medium voltage drives
  • VCD™ Voltage Change Device enables quick 230V or 460V voltage selection
  • Double sealed ball bearings are pre-lubricated with a special formulation for moisture resistance and provide extra-long life
  • Automatic reset thermal protector protects against motor overload and automatically resets
  • Non-conductive greased bearings
  • UL® recognized and CSA® certified
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product

There are currently no resources for this product.

Brand Regal Beloit America
HP Rating 1-1/2 hp, 1 hp
Voltage Rating 230/460 V, 190/380 V
Amperage Rating 6/3 A, 5.4/2.7 A
Frequency Rating 60 Hz
Phase 3 ph
Speed Rating 1140 rpm, 950 rpm
Number of Speeds 1
Enclosure Type Open Air Over
Frame 56HZ
Shaft Size 5/8 in Dia x 6 in L
Service Factor 1
Bearing Type Ball
Mounting Type Bolt-On Base
Temperature Rating 70 deg C
Insulation Class F
Housing Material Steel
Additional Information 9.65 in L Frame, 6-Pole, Continuous-Duty, Squirrel Cage Induction Run Type, Reversible Rotation, Single Special Extension Shaft, Line/Inverter Starting Method
