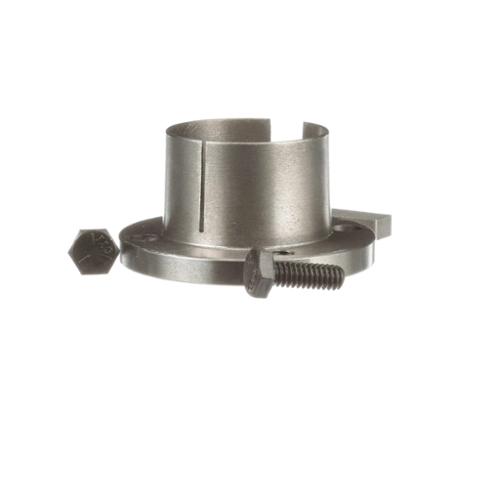

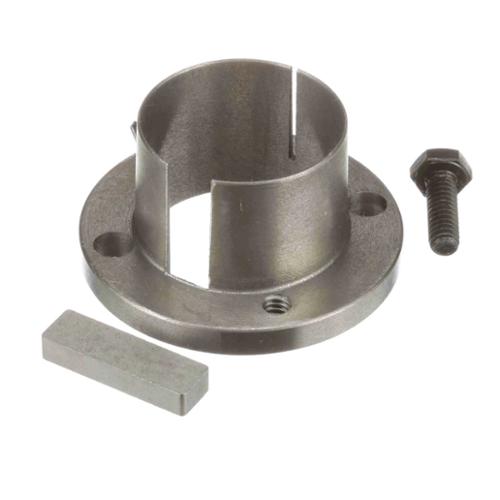

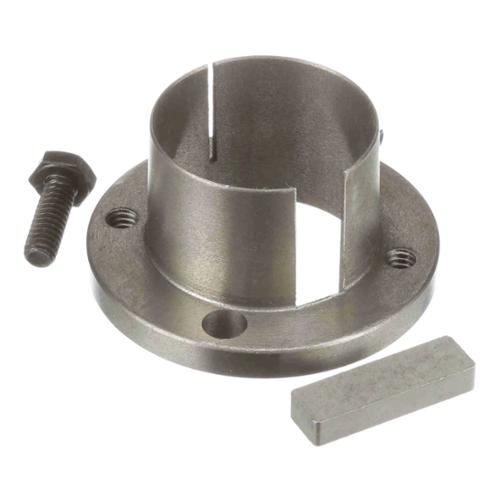

1 3/8" Split Taper Bushing for Combination Sheaves, AKH/BKH/2BKH Series

Regal Beloit America

PART H 1 3/8

MFG H 1 3/8

Calculating price...

QUANTITY

Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge
Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

There are currently no resources for this product.

Brand Regal Beloit America

Series H Series

Bore Diameter 1-3/8 in

Outside Diameter 2-1/2 in

Barrel Diameter 1.57 in, 1.625 in

Length 1-1/4 in

Keyway Size 5/16 x 5/32 in

Flange Type Solid

Flange Diameter 2-1/2 in

Flange Thickness 1/4 in

Number of Cap Screws 2

Cap Screw Size 1/4 x 3/4 in

Hub Diameter 2-1/2 in

Torque Rating 95 in-lb

Material Iron/Steel
