Home Residential HVAC Equipment Residential Split Units Air Handlers ADP F-Series low-profile air handler 2 ton, 800 CFM, ECM, multi-position R410a

ADP

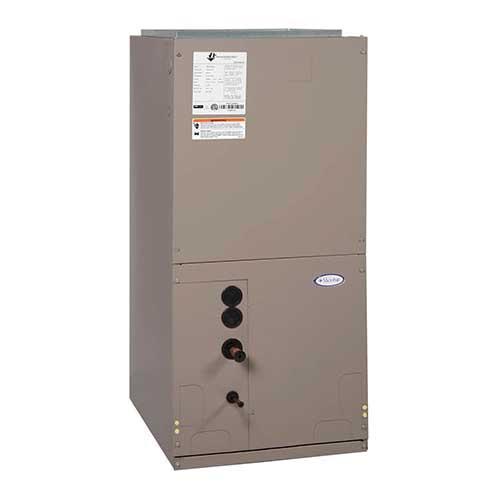

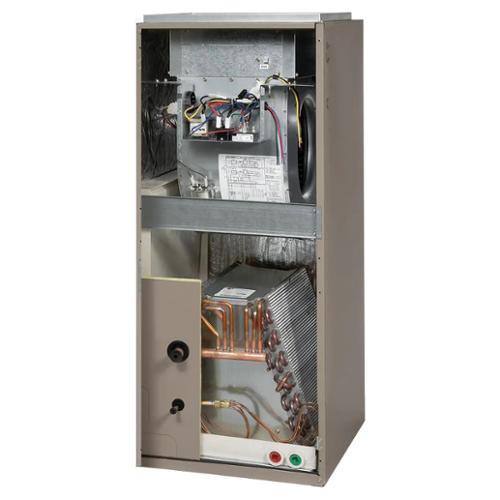

ADP F-Series low-profile air handler 2 ton, 800 CFM, ECM, multi-position R410a

PART FEMG31924S001
MFG FEMG31924S001
Calculating price...
QUANTITY

About this item

  • Compact, lightweight design, up to 12" shorter than the comparable OEM models
  • Multi-position configurations including upflow, downflow and horizontal left or right
  • Electric or no heat, with PSC or 5-speed high-efficiency ECM motor
  • Easy-to-access control panel with optional 5-20 kW heat kit factory installed
  • Available in 208/240 V and 120 V
  • Aluminum or copper coils

A compact, efficient solution that's perfect for single or multi-family use, the F Series air handler is designed to meet the industry's new energy efficiency standards. The F Series is now offered with a 240 V or 120 V 5-speed ECM motor, to meet any electrical application need. The new 120 V 5-speed ECM means there's no need for a 240 V circuit, saving time and money when a traditional AC system is being replaced with a heat pump while helping systems meet rebate or tax credit efficiency. This 120 V unit is meant for mild climate applications where electric heat isn't a requirement.

Warranty Information
Warranty Information
Instruction/Installation Manual
Instruction/Installation Manual
Specification Sheet
Specification Sheet
Brand ADP
Series F Series
Nominal Capacity 2 ton
BTU Rating 24 MBtu/hr
Voltage Rating 208/240 V
Amperage Rating 2/2.1 A
HP Rating 1/2 hp
Frequency Rating 60 Hz
Phase 1 ph
CFM Rating 800 cfm
Configuration Horizontal, Vertical
Refrigerant Type R-410A
Sound Level 50 dBA
Fuse Rating 15 A
Connection Size 3/4 in
Liquid Line Size 3/8 in
Suction Line Size 3/4 in
Filter Size 12 x 20 in
Number of Speeds 5
Motor Type ECM
Pressure Rating 500 psi
Material Steel
Finish Painted
Color Taupe
Dimensions 36 in H x 22 in W x 15 in D
Additional Information Non-Bleed HP-A/C TXV Metering Device, Stripped Wire Line Voltage Connection
