Home Motors, Belts and Blades Air Conditioning Motors Century Fan and Blower Motor, 1/2 HP, 1 Ph, 60 Hz, 115 V, 1800 RPM, J56 Frame, DP

Regal Beloit America

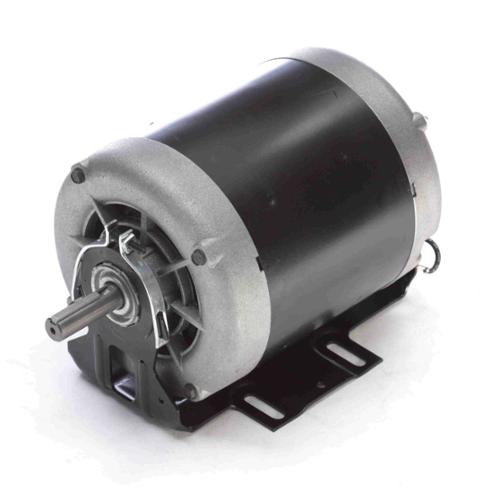

Century Fan and Blower Motor, 1/2 HP, 1 Ph, 60 Hz, 115 V, 1800 RPM, J56 Frame, DP

PART F678
MFG F678
Calculating price...
QUANTITY

About this item

  • Automatic reset thermal protector prevents overheating
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor
  • Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
  • Vertical/horizontal mounting for proper placement of the fan within airflow

There are currently no resources for this product.

Brand Regal Beloit America
HP Rating 1/2 hp
Voltage Rating 115 V
Amperage Rating 7 A
Frequency Rating 60 Hz
Phase 1 ph
Speed Rating 1725 rpm
Number of Speeds 1
Enclosure Type Drip-Proof
Frame J56
Shaft Size 0.625 in Dia x 1.97 in L
Service Factor 1.25
Bearing Type Sleeve
Mounting Type Cushion Base
Temperature Rating 40 deg C
Insulation Class A
Housing Material Steel
Additional Information 11.13 in L Dimensions, 4-Pole, 5.13 in L Frame, Split Phase, Induction Run, Single or Dual Voltage Type, Reversible CCW Rotation, Continuous-Duty, Across-The-Line Starting Method, Keyed Shaft
