Home Motors, Belts and Blades Air Conditioning Motors Condenser Fan Motor, 1/2 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, ENCLOSED

Regal Beloit America

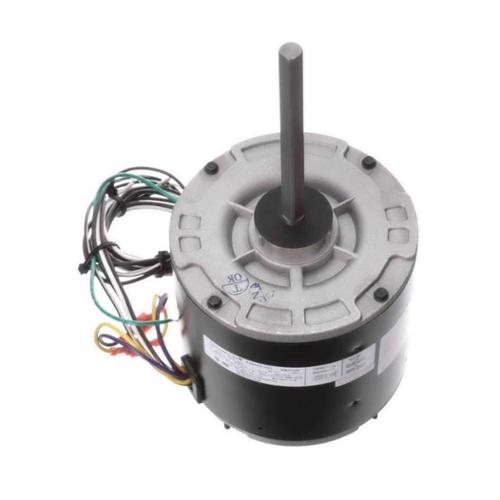

Condenser Fan Motor, 1/2 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, ENCLOSED

PART EM3730F
MFG EM3730F
Calculating price...
QUANTITY

About this item

  • Thermally protected
  • 1/2 in Dia shaft with double flat
  • 36 in leads
  • Extended studs lead end, mounting holes in shell, belly band
Specification Sheet
Specification Sheet
Owners/User Manual
Owners/User Manual
Catalog
Catalog
Brand Regal Beloit America
HP Rating 1/2 hp
Voltage Rating 208 to 230 V
Amperage Rating 3/3.5 A
Frequency Rating 60 Hz
Phase 1 ph
Speed Rating 1075 rpm
Number of Speeds 1
Enclosure Type Totally Enclosed Air Over
Frame 48Y
Shaft Size 1/2 in Dia x 4-1/2 in L
Service Factor 1
Bearing Type Ball
Mounting Type Extended Stud
Temperature Rating 70 deg C
Insulation Class Class F
Housing Material Steel
Overall Height 11.67 in
