Klein Tools, Inc

PART CL445

MFG CL445

Calculating price...

QUANTITY

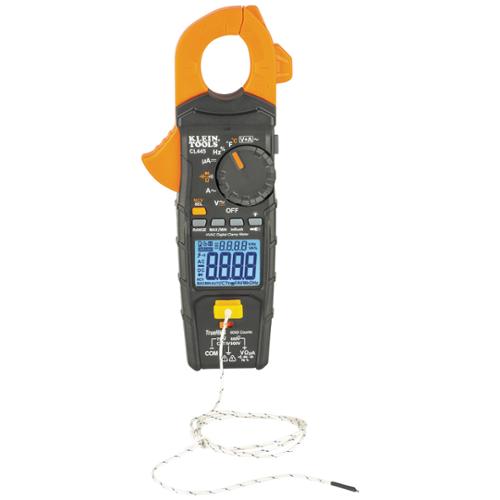

CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
Digital clamp measures 600.0 A AC current and inrush current
K-Type thermocouple port for measuring temperature from -328 to 2462 Degrees Fahrenheit (-200 to 1400 Degrees Celsius)
Detect AC current with non-contact voltage tester integrated into the clamp jaw
Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
Dedicated mode for capturing DC micro amp and inrush current
CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

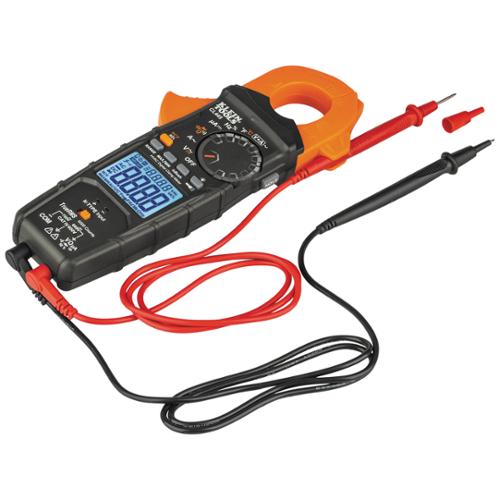

Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation

SDS

SDS

Brand Klein Tools, Inc

Voltage Rating 600 - 750 VAC/VDC

Amperage Rating 600 A

Resistance 60 MOhm

Jaw Capacity 1-1/4 in

Counts 6000

Frequency Rating 60 kHz

Capacitance 6000 uF

Temperature Rating 148 to 1832 deg F

Material ABS

Dimensions 9.24 in L x 3.77 in W x 1.59 in H
