Home Test Instruments Meters HVAC Electrical Test Kit True-RMS 400a Auto-Ranging Clamp Meter, Dual IR and probe Thermometer and Non Contact Voltage Tester with Flashlight

Klein Tools, Inc

HVAC Electrical Test Kit True-RMS 400a Auto-Ranging Clamp Meter, Dual IR and probe Thermometer and Non Contact Voltage Tester with Flashlight

PART CL320KIT
MFG CL320KIT
Calculating price...
QUANTITY

About this item

  • HVAC Kit with testers for the HVAC Professional: HVAC Digital Clamp Meter, Dual IR/Probe Thermometer and Dual Range Non-Contact Voltage Tester with Flashlight
  • Cat. No. CL320 HVAC Clamp Meter with TRMS technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity and temperature
  • Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); measure surface temperature with Infrared Thermometer (DS ratio 8:1)

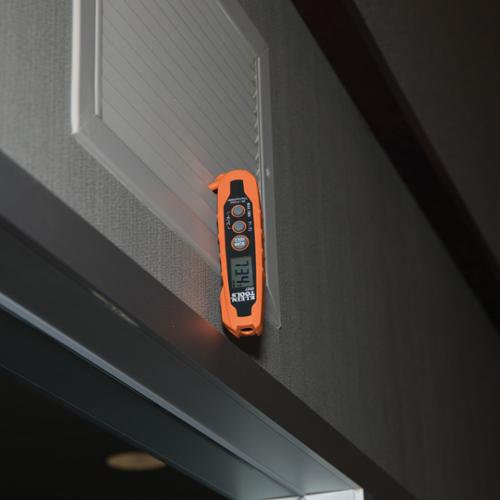

  • Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures
  • Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications

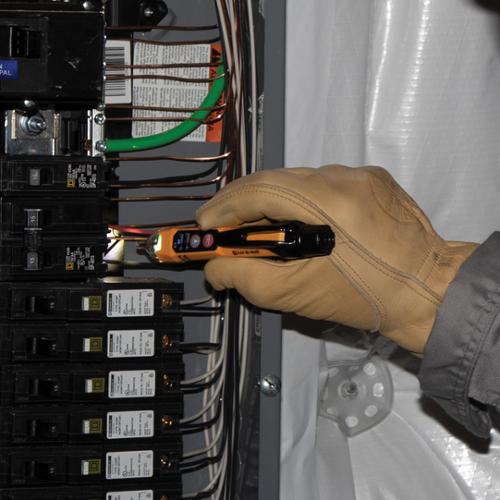

  • Non-Contact Voltage Tester detects voltage with simultaneous visual and audible voltage indicators
  • Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection
  • IR07 Thermometer is not a medical device and is NOT intended for use on people or animals

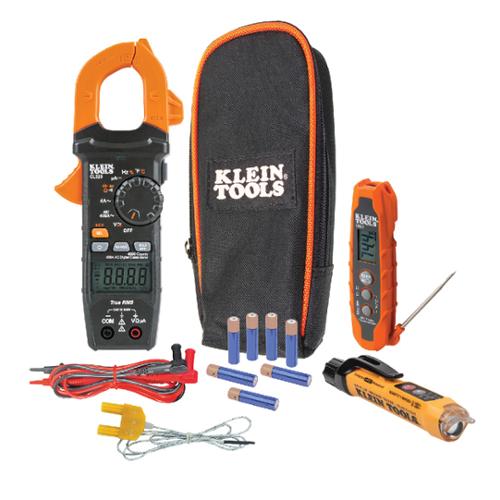

Klein Tools HVAC Electrical Test Kit features Cat. No. CL320 Auto-Ranging, TRMS (True Root Mean Square), 400A HVAC Clamp Meter; Cat. No. IR07 Dual IR and Probe Thermometer, for both surface and air temperature measurements; and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester With Flashlight, for detection of AC voltage from 12 to 1000V with visual and audible indicators. Included is a convenient carrying pouch, test leads with CAT III/CAT IV safety caps, thermocouple and all batteries.

Catalog
Catalog
Video Link
Video Link
Instruction/Installation Manual
Instruction/Installation Manual
Brand Klein Tools, Inc
Material ABS
Additional Information 600 VAC/VDC, 1000 VAC Voltage Rating, 10 Hz to1 MHz Frequency Rating, 400 A Amperage Rating, 4000 uF Capacitance, 40 MOhm Resistance, 4000 Count Backlit LCD Display, -40 to 1832 deg F Temperature Rating, 8.45 in L x 3.5 in W x 1.5 in H Dimension
