HEATCRAFT INC.

PART BCH0045LBBCZA0300

MFG BCH0045LBBCZA0300

Calculating price...

QUANTITY

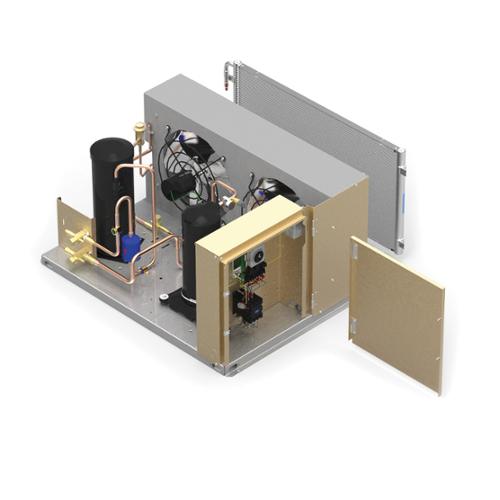

Microchannel coil technology standard on all units
Painted steel cabinets for superior strength and corrosion protection
Heavy duty, steel, 1-1/2 in tall base
Suction service valves for hermetic and scroll compressors located outside the cabinet for quick installations
Receiver with fusible plug, liquid shutoff valve and charging port is standard
Large electrical panel for ease of access
Prefabricated wiring harnesses for tight crimp connections and consistent labeling
Unit stays on if the hood is removed for servicing
Sight glass is easily viewable
All units are completely leak tested in a helium environment, bump tested and allowed to cycle off on the high and low pressure control. Each unit has a copy of the run data shipped inside the electrical panel
Electrical circuits are completely checked for continuity
Piping is laid out to minimize stress and vibration and is pre-bent to eliminate leaks
Encapsulated, auto-reset, high and low pressure controls to eliminate leaks (adjustable low pressure control standard on all models)

Catalog

Catalog

Brand HEATCRAFT INC.

Voltage Rating 208-230 V

Amperage Rating 33.5 A

BTU Rating 24710 Btu/hr

HP Rating 4 hp

Phase 1 ph

Frequency Rating 60 Hz

Refrigerant Type R-404A, R-507A, R-448A, R-449A, R-407A, R-407C, R-407F

Connection Size 1/2 x 7/8 in

Sound Level 64 dBA

Material Steel

Finish Painted

Temperature Rating 90 deg F

Dimensions 29-1/4 in H x 43-7/8 in W x 30-1/4 in D

Additional Information Outdoor Horizontal Style, Scroll Compressor, Timer Contactor Package
