Home FJM Series Heat Pump Condensing Unit, 208-230 V, 8.3/8.5 A, 22000 Btu/hr Cooling, 1 ph Phase, Steel

Samsung

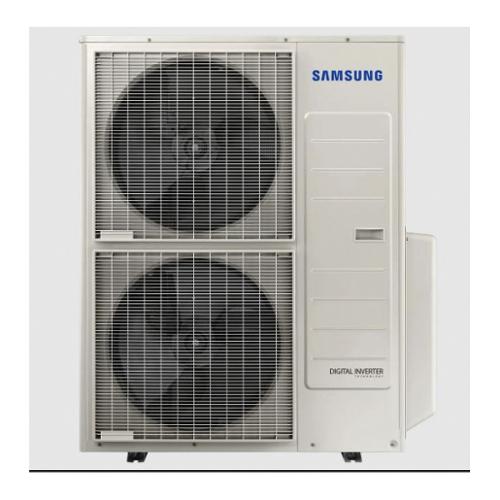

FJM Series Heat Pump Condensing Unit, 208-230 V, 8.3/8.5 A, 22000 Btu/hr Cooling, 1 ph Phase, Steel

PART AJ024BXJ3CH/AA
MFG AJ024BXJ3CH/AA
Calculating price...
QUANTITY

About this item

  • Auto or manual addressing of indoor units
  • The outdoor unit shall supply power individually to the indoor units via 14/3 AWG power wire
  • Auto restart after power loss
  • Available maximum current setting option to reduce operating current
  • System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue-grade, for reference only)
  • Soft start to reduce current demand during compressor start

This multi-zone residential and light commercial system offers three different indoor units to choose from and multiple control options. With minimal installation space, it's a flexible option for homes or offices with many rooms. The free Joint Multi (FJM) unit supports two to five-indoor units for multi-zone control with one outdoor unit.

Instruction/Installation Manual
Instruction/Installation Manual
Line Drawing
Line Drawing
Service Manual
Service Manual
Specification Sheet
Specification Sheet
Series FJM Series
Voltage Rating 208-230 V
Amperage Rating 8.3/8.5 A
Frequency Rating 60 Hz
Phase 1 ph
Heating BTU Rating 29600 Btu/hr
Cooling BTU Rating 22000 Btu/hr
Cooling CFM Rating 1667 cfm
EER Rating 10.1, 11.4, 12.7
SEER Rating 17.5, 18.5, 19.5
HSPF Rating 8.2, 8.5, 8.8
Compressor Type Twin BLDC Rotary Inverter
Refrigerant Type R-410A
Liquid Line Size 1/4 in
Suction Line Size 3/8 in
Fuse Rating 25 A
Heating Sound Level 51 dBA
Cooling Sound Level 48 dBA
Material Steel
Finish Galvanized/Powder-Coated
Heating Operating Temperature 5 to 75 deg F
Cooling Operating Temperature 14 to 114.8 deg F
Overall Width 34-5/8 in
Overall Height 31-7/16 in
Suitable For Use With Model AR**TSFABWKNCV, AC0**BNNDCH/AA, AC012BNZDCH/AA, AJ0**BNHDCH/AA Indoor Units
Additional Information 12-3/16 in D
Brand Samsung
