- Bathroom Exhaust Fan
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room side, no attic access required, this means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug-in, permanently lubricated, brushless DC motor engineered for continuous operation
- Can be installed in a wall if mounted 8 ft or more above the floor
- Dynamically balanced centrifugal blower wheel for quiet, efficient performance
- Low RPM for quiet operation
- FlexFlow technology, select between 50 cfm, 80 cfm or 110 cfm

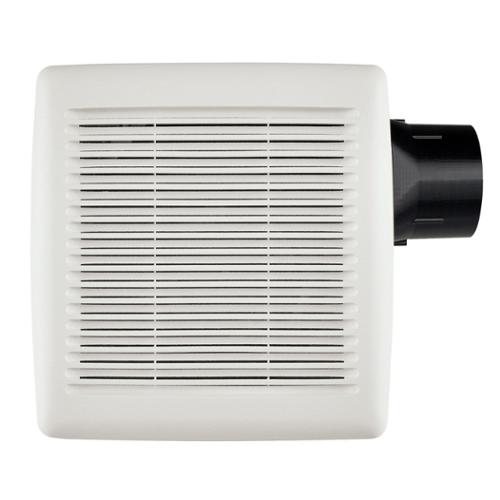

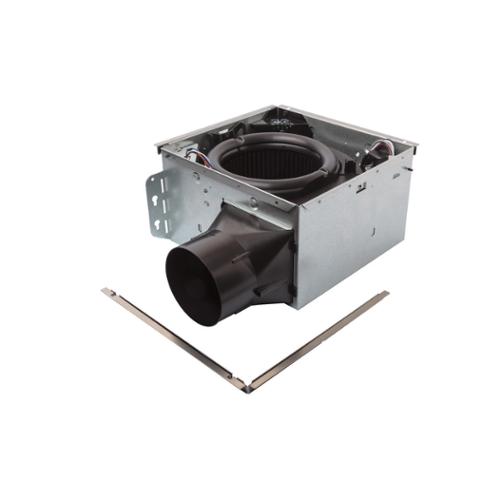

Broan® AE50110DC Flex DC series exhaust bath fan, ENERGY STAR offers easy, room side installation, with "no attic access required". Ceiling-mounted ventilation fan features foldable mounting ears and EZ duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable cfm range of 50 to 110 at a quiet operation of <0.3 to 0.9 sones.
Brand
Broan-Nutone
Series
Flex DC
Voltage Rating
120 VAC
Amperage Rating
0.3 A
Frequency Rating
60 Hz
Power Rating
3.4 to 14.9 W
Mounting Type
Ceiling, Wall
Grille Size
11-1/2 x 12 in
Duct Size
4 in
Motor Type
Brushless DC
CFM Rating
50 to 110 cfm
Coverage Area
105 sq-ft
Noise Rating
0.3 to 1.4 sones
Overall Length
9-1/4 in
Overall Width
10 in
Overall Height
5-3/4 in
Housing Material
Steel
Housing Finish
Galvanized
Housing Color
White
