Home Motors, Belts and Blades Refrigeration Motors ARKTIC® 142 Refrigeration Motor, 1/3 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO

Regal Beloit America

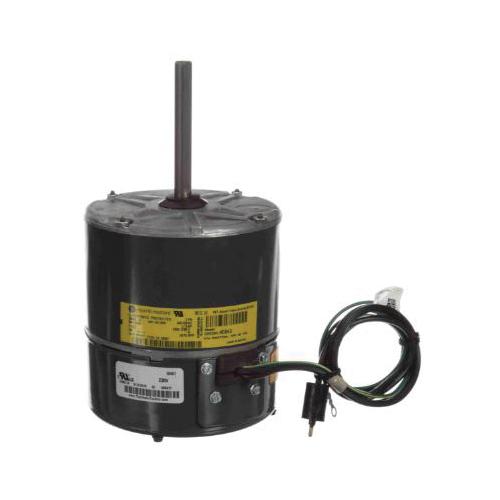

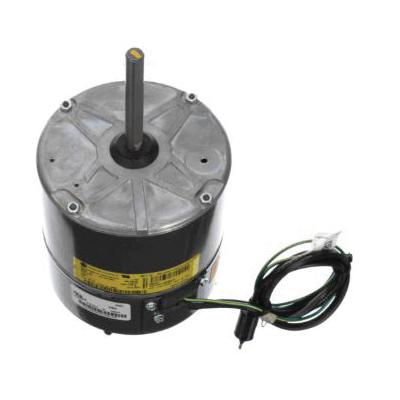

ARKTIC® 142 Refrigeration Motor, 1/3 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO

PART 5R007
MFG 5R007
Calculating price...
QUANTITY

About this item

  • Pre-programmed
  • NEMA® 48-frame
  • Ball Bearing with low temperature grease
  • Efficiency: 77% peak
  • 50/60HZ

Arktic® 142 motors are primarily used in the evaporators of commercial refrigeration walk-in coolers and freezers as well as outdoor condensers, but can be used in many applications demanding high efficiency and dependability with output ratings between 1/5 - 1/3 HP including parallel rack fan motors.

There are currently no resources for this product.

Brand Regal Beloit America
HP Rating 1/3 hp
Voltage Rating 208 - 230 V
Amperage Rating 2.6 to 3.5 A
Frequency Rating 50/60 Hz
Phase 1 ph
Speed Rating 1075 rpm
Number of Speeds 1
Enclosure Type Totally Enclosed Air Over
Frame 48
Shaft Size 1/2 in Dia x 3.9 in L
Service Factor 1
Bearing Type Ball
Mounting Type Belly Band
Temperature Rating 40 deg C
Insulation Class Class B
Overall Height 10.09 in
Additional Information 5SME39HLHE043 Model, CCW Rotation, Rolled Steel Frame
