Home Motors, Belts and Blades Refrigeration Motors ARKTIC® 59 Refrigeration Motor, 1/15 HP, 1 Ph, 60/50 Hz, 115 V, 1550 RPM, 3.3 Frame, TEAO

Regal Beloit America

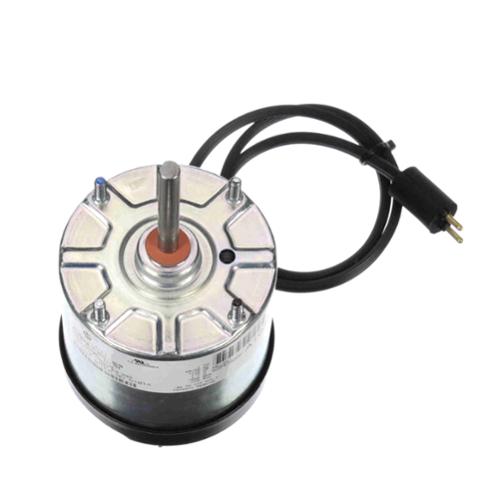

ARKTIC® 59 Refrigeration Motor, 1/15 HP, 1 Ph, 60/50 Hz, 115 V, 1550 RPM, 3.3 Frame, TEAO

PART 5101A
MFG 5101A
Calculating price...
QUANTITY

About this item

  • Thermally protected
  • 5/16 in Dia shaft with flat
  • 24 in leads with molded plug
  • Extended studs shaft end and lead end
Full Engineering Drawing
Full Engineering Drawing
Brand Regal Beloit America
HP Rating 1/15 hp
Voltage Rating 115 VAC
Amperage Rating 1.1 A
Frequency Rating 50/60 Hz
Phase 1 ph
Speed Rating 1550 rpm
Enclosure Type Totally Enclosed Air Over
Frame 3.3
Shaft Size 0.312 in
Bearing Type Ball
Mounting Type Extended Stud
Temperature Rating 25 deg C
Insulation Class Class B
Housing Material Steel
Overall Width 6.74 in
Additional Information 0.052 kW Power, 4-Pole, Counter Clockwise Rotation
