• Measures high and low side pressures and temperatures
• Displays vapor and liquid saturation temperatures
• Calculates system superheat and subcooling
• On-board data logging; export to your computer with USB or to your phone via YJACK VIEW® App
• Compatible with measureQuick® App
• Pressure hold mode displays rate of change for vacuum and positive pressure measurements
• Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW®
• High resolution, full color, backlit, 5″ touchscreen display

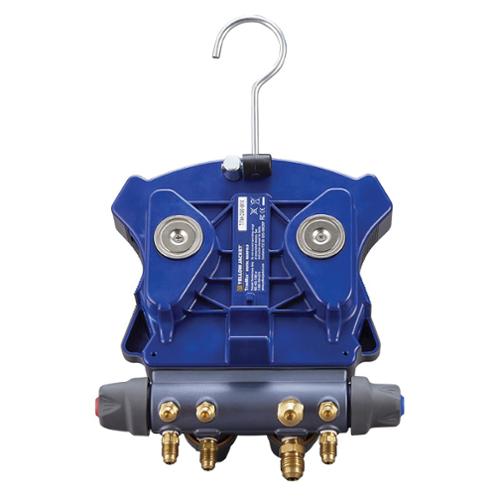

• Robust housing with ergonomic grip
• External vacuum sensor with vacuum target notification

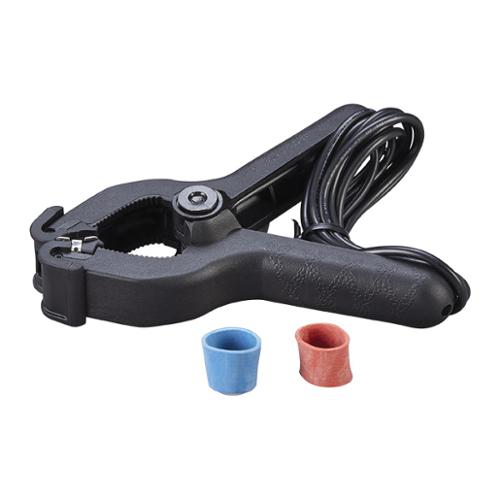

• Larger temperature clamps (2) for up to 1-5/8″ pipes
• Bluetooth® 5.2; range up to 1,000 feet
• Maximum working pressure 740 psia (51.0 bar)
• Multiple languages: French, Spanish, German and English
• Rechargeable battery with life indicator
• US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
• Meets IP52 standards
• Two-year warranty

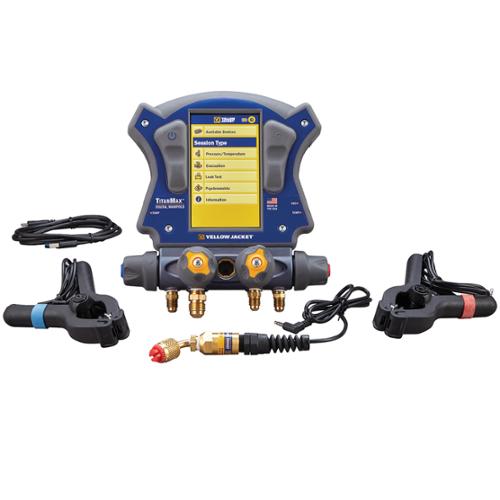

The YELLOW JACKET® TITANMAX™ Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth® to the YJACK VIEW® App or measureQuick® App for further analysis.
